Troubleshooting Guide Flywheel on Gcv160 Won’t Start

If your Honda GCV160 engine won’t start and you suspect a flywheel issue, this guide will help you diagnose and resolve the problem efficiently. We’ll walk you through inspecting the flywheel, checking the ignition coil, testing for spark, and ruling out other common causes—so you can get your lawn mower or generator running again with confidence.

Key Takeaways

• Check for spark first: A lack of spark is often the real culprit behind a no-start condition, even if the flywheel looks fine.
• Inspect the flywheel key: A sheared flywheel key can cause timing issues, preventing the engine from starting despite normal cranking.
• Measure air gap correctly: The ignition coil must be positioned 0.2–0.4 mm from the flywheel magnets—too close or too far kills spark.
• Look for physical damage: Cracks, warping, or missing fins on the flywheel can affect cooling and ignition performance.
• Test the ignition coil: Use a multimeter to verify resistance values; faulty coils are common on older GCV160 engines.
• Rule out fuel and compression issues: Always confirm basic engine health before diving into flywheel-specific fixes.
• Safety first: Always disconnect the spark plug and ground it before working near the flywheel to prevent accidental starts.

Quick Answers to Common Questions

Tip/Question?

Can I start the engine without the flywheel cover?

No—the cover protects internal components and ensures proper airflow. Running without it can cause overheating or injury.

Tip/Question?

How often should I inspect the flywheel?

Check it annually during routine maintenance, or after any impact (e.g., hitting a rock).

Tip/Question?

Is it safe to clean the flywheel magnets with water?

No—use brake cleaner or isopropyl alcohol. Water can cause rust and damage the magnets.

Tip/Question?

Can a bad ignition coil cause overheating?

Indirectly, yes—if the engine misfires or runs lean due to weak spark, it can overheat.

Tip/Question?

Should I replace the flywheel if the key is sheared?

Not necessarily—just replace the key. But inspect the flywheel for damage caused by the impact.

Introduction: Why Your GCV160 Won’t Start—And How the Flywheel Might Be to Blame

If you’ve ever pulled the starter cord on your Honda GCV160-powered lawn mower, pressure washer, or generator only to hear it crank but not fire up, you’re not alone. The GCV160 is a reliable workhorse, but like any small engine, it can develop issues over time—especially when it comes to starting. While many assume the problem lies with fuel or spark plugs, the flywheel often gets overlooked… until now.

In this comprehensive troubleshooting guide, we’ll focus specifically on flywheel-related causes that prevent your GCV160 from starting. You’ll learn how to safely inspect, test, and repair common flywheel and ignition system problems. Whether you’re a DIY enthusiast or a weekend warrior maintaining your outdoor equipment, this step-by-step walkthrough will equip you with the knowledge and confidence to diagnose and fix the issue—no mechanic required.

We’ll cover everything from checking for spark and inspecting the flywheel key to testing the ignition coil and ensuring proper air gap alignment. By the end, you’ll understand not just *what* to look for, but *why* it matters—and how to prevent future no-start scenarios.

Step 1: Confirm It’s Not a Simple Fix

Before diving into flywheel diagnostics, rule out the basics. Many GCV160 no-start issues stem from simple oversights.

Check the Fuel System

Old or contaminated fuel is one of the most common reasons small engines fail to start. If your machine has been sitting for weeks (or months), the gasoline may have degraded, forming varnish that clogs the carburetor.

• Drain the old fuel from the tank and carburetor bowl.
• Refill with fresh, ethanol-free gasoline (if possible).
• Inspect the fuel filter and fuel lines for blockages or cracks.

Pro tip: Add a fuel stabilizer if you plan to store the engine for more than 30 days.

Inspect the Spark Plug

A fouled or damaged spark plug can mimic ignition system failure.

• Remove the spark plug using a socket wrench.
• Check for carbon buildup, oil fouling, or a cracked insulator.
• Clean the electrode with a wire brush or replace the plug if it’s worn.
• Set the gap to 0.7–0.8 mm (use a feeler gauge).

Reinstall the plug finger-tight, then give it a quarter-turn with the wrench. Never overtighten—it can damage the threads in the aluminum cylinder head.

Verify Compression

Low compression means the engine can’t build enough pressure to ignite the fuel-air mixture. While this isn’t directly a flywheel issue, it’s essential to confirm before blaming the ignition system.

• Pull the starter cord several times with the spark plug removed.
• Feel for strong resistance—this indicates good compression.
• If the cord pulls easily with little resistance, you may have worn piston rings or a leaking head gasket.

If compression is low, further engine disassembly may be needed—but that’s beyond the scope of flywheel troubleshooting.

Step 2: Safety First—Prepare for Flywheel Inspection

Working near the flywheel involves rotating parts and high-voltage ignition components. Safety is non-negotiable.

Disconnect the Spark Plug

Always remove the spark plug wire and ground the plug against the engine block. This prevents accidental ignition while you’re working.

Secure the Engine

If you’re removing the flywheel, stabilize the engine in a vise or on a sturdy workbench. Use soft jaws or wood blocks to avoid damaging the engine casing.

Use Proper Tools

You’ll need:

• A flywheel puller (specific to GCV160—don’t improvise!)
• A torque wrench
• A multimeter
• Feeler gauges
• Safety glasses and gloves

Never strike the flywheel with a hammer to remove it—this can crack the casting or damage the crankshaft.

Step 3: Test for Spark—The First Real Clue

If the engine cranks but doesn’t start, and fuel/compression are good, the next step is to check for spark. This tells you whether the ignition system—including the flywheel and coil—is functioning.

Perform a Spark Test

• Reconnect a new or cleaned spark plug to the wire.
• Ground the plug’s metal base against the engine block.
• Have a helper pull the starter cord while you watch the gap between the electrodes.
• Look for a bright blue spark. A weak orange spark or no spark indicates an ignition problem.

Note: Do this in a dimly lit area for better visibility.

Interpret the Results

If you see a strong spark, the ignition system is likely working—and the flywheel may not be the issue. Focus on fuel delivery or carburetor adjustments instead.

If there’s no spark or a weak spark, the problem likely lies in the flywheel, ignition coil, or associated components.

Step 4: Inspect the Flywheel Key

The flywheel key is a small but critical piece of metal that aligns the flywheel with the crankshaft. If it’s sheared, the engine’s timing is off—and it won’t start, even if everything else looks fine.

Why the Flywheel Key Shears

The key can break if the engine experiences a sudden impact—like hitting a rock, stump, or curb while mowing. It’s designed to fail first to protect more expensive components.

How to Check the Key

• Remove the flywheel using a proper puller (see Step 5 for details).
• Locate the keyway—a narrow slot in the crankshaft where the key sits.
• Inspect the key: Is it intact? Is it seated properly? Is it cracked or partially sheared?

A damaged key will cause the flywheel to rotate slightly out of sync with the piston, throwing off ignition timing.

Replace the Key if Needed

• Remove the old key completely.
• Insert a new key (Honda part #90601-ZE1-000 or equivalent) into the keyway.
• Ensure it’s flush with the crankshaft surface.
• Reinstall the flywheel and torque the bolt to spec (see Step 5).

Warning: Never run the engine without a properly installed key—it can cause catastrophic damage.

Step 5: Remove and Inspect the Flywheel

If the spark test fails and the key is intact, it’s time to examine the flywheel itself.

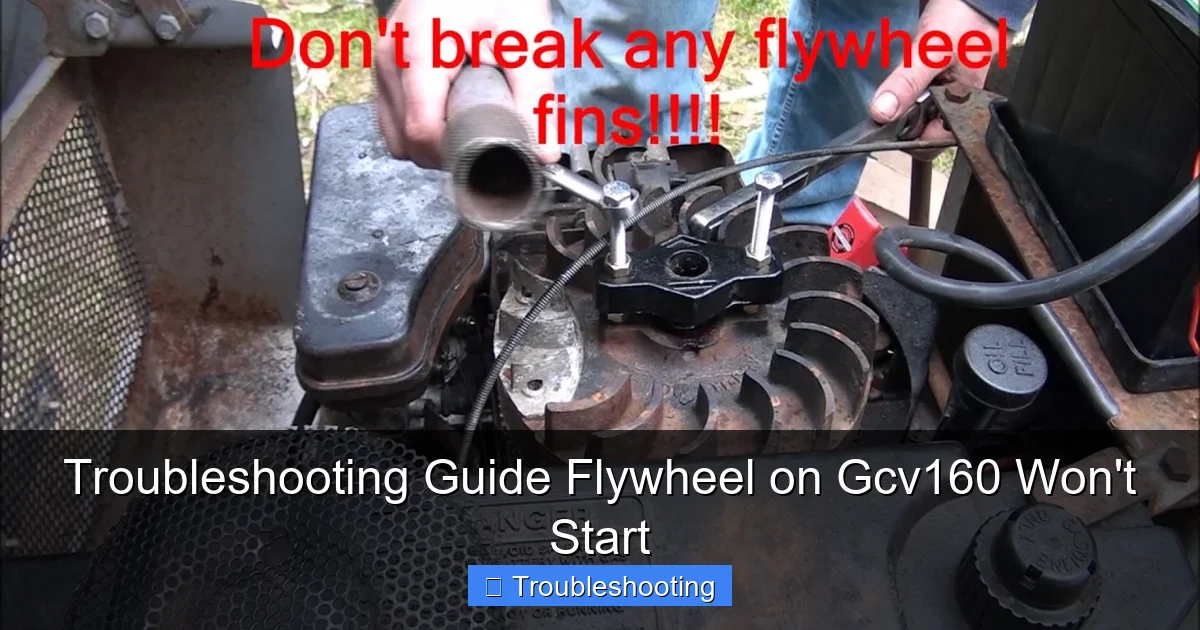

Remove the Flywheel Safely

• Loosen the flywheel nut (usually 19mm) while holding the flywheel steady. You may need a strap wrench or an impact wrench.
• Use a flywheel puller tool—thread it into the puller holes on the flywheel.
• Tighten the puller bolt evenly until the flywheel pops free. Do not pry or hammer.

Once removed, place the flywheel on a clean surface.

Inspect for Physical Damage

• Look for cracks, especially around the magnet mounts or cooling fins.
• Check for warping—place the flywheel on a flat surface and look for gaps.
• Ensure all cooling fins are intact. Bent or missing fins reduce airflow and can cause overheating.
• Inspect the magnets: Are they securely attached? Are they cracked or chipped?

Damaged magnets won’t generate the magnetic field needed to trigger the ignition coil.

Clean the Flywheel

Use a wire brush or brake cleaner to remove carbon buildup, oil, or debris from the magnets and fins. Dirty magnets can interfere with the magnetic pulse.

Step 6: Check the Ignition Coil and Air Gap

The ignition coil generates the high-voltage spark by reacting to the rotating magnets on the flywheel. If the coil is faulty or misaligned, no spark will occur.

Locate the Ignition Coil

The coil is mounted near the flywheel, usually held by two bolts. It has a two-wire connector leading to the spark plug.

Measure the Air Gap

The gap between the coil and the flywheel magnets must be precise—too close and it can rub; too far and it won’t generate enough voltage.

• Use a feeler gauge to measure the gap. The specification for the GCV160 is 0.2–0.4 mm.
• If the gap is incorrect, loosen the coil mounting bolts and adjust its position.
• Tighten the bolts securely once the gap is set.

Tip: Rotate the flywheel slowly while checking the gap at multiple points to ensure consistency.

Test the Ignition Coil with a Multimeter

Even if the coil looks fine, it may be internally damaged. Use a multimeter to check resistance.

• Set the multimeter to ohms (Ω).
• Test the primary winding: Place probes on the two small terminals. Expect 0.2–2.0 ohms.
• Test the secondary winding: Place one probe on a small terminal and the other on the high-tension lead (where the spark plug wire connects). Expect 2,000–5,000 ohms.

If readings are outside these ranges, replace the coil. Honda part #30500-ZE1-013 is commonly used for GCV160 engines.

Step 7: Reassemble and Test

Once all inspections and repairs are complete, it’s time to put everything back together.

Reinstall the Flywheel

• Align the keyway with the crankshaft key.
• Slide the flywheel onto the crankshaft.
• Hand-tighten the flywheel nut, then torque it to 55–65 ft-lbs using a torque wrench.

Over-tightening can damage the crankshaft; under-tightening can cause the flywheel to wobble.

Reconnect Components

• Reattach the ignition coil and secure it with the correct air gap.
• Reconnect the spark plug wire.
• Refill with fresh fuel if needed.

Test Start the Engine

Pull the starter cord several times. The engine should fire within a few pulls.

If it still won’t start, double-check:

• Fuel flow
• Spark plug condition
• Carburetor settings
• Air filter cleanliness

Troubleshooting Common Post-Repair Issues

Even after flywheel repairs, some problems may persist.

Engine Starts but Dies Immediately

This often points to a fuel delivery issue—check the carburetor for clogs or a stuck float.

Intermittent Spark

Could indicate a loose coil connection or a failing ignition module. Recheck all wiring and connections.

Flywheel Wobbles After Reinstallation

Ensure the flywheel nut is torqued correctly and the crankshaft isn’t bent. A wobbling flywheel can damage the coil over time.

Conclusion: Confidence in Every Pull

Troubleshooting a GCV160 that won’t start can feel overwhelming—but by focusing on the flywheel and ignition system, you’ve tackled one of the most overlooked yet critical areas. From checking the flywheel key to testing the ignition coil and setting the correct air gap, each step brings you closer to a reliable start.

Remember: most no-start issues aren’t due to major engine failure. Often, it’s a small part—like a sheared key or misaligned coil—that throws everything off. With the right tools, a methodical approach, and a focus on safety, you can diagnose and fix these problems yourself.

Regular maintenance—like using fresh fuel, replacing spark plugs annually, and inspecting the flywheel during seasonal tune-ups—can prevent many of these issues before they happen. And if you do encounter a stubborn no-start, you now have the knowledge to tackle it head-on.

So the next time your GCV160 refuses to fire up, don’t panic. Grab your tools, follow this guide, and get back to work—with confidence.
